Thickener
Washing & Classification Equipment
Thickener
A modular gravity sedimentation system designed with bolted panel construction for ease of transport and rapid installation.
• Concentrates slurry by settling solids and producing clarified overflow.
• Commonly used in mining tailings, wastewater sludge, and chemical slurry separation.
Features: Prefabricated bolted panels, central feedwell, rake arms, overflow weir, underflow discharge cone.
Benefits: Quick site assembly, reduced logistics costs, relocatable design, and reliable solid-liquid separation.
Modular Construction for Efficient Slurry Concentration

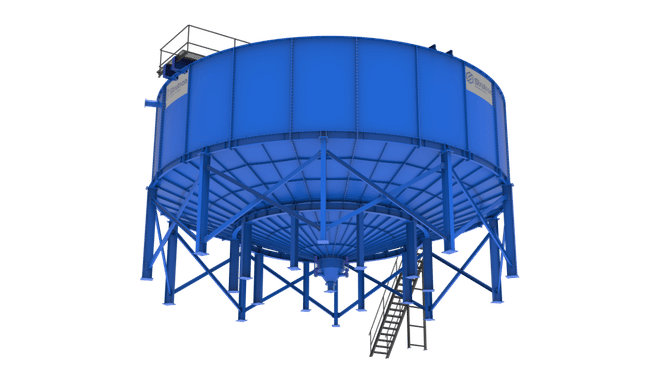

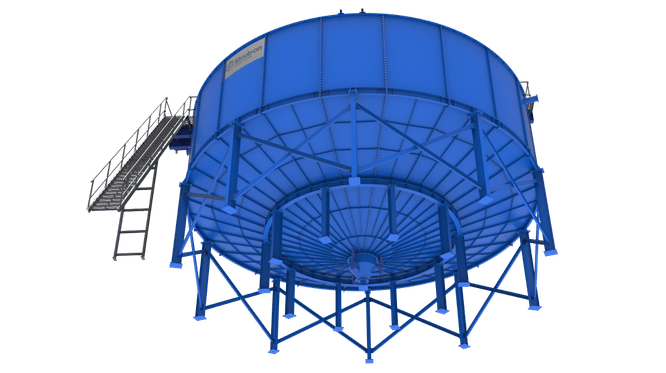

Our Bolted Thickener is engineered for solid-liquid separation in remote or large-scale industrial sites. Using modular bolted panels, it enables rapid transport and assembly without extensive welding. Equipped with rake mechanisms and optimized feedwell design, it ensures efficient slurry thickening and water recovery.
- Design: Bolted steel panels, central feedwell, rake arms, overflow weir
- Function: Gravity sedimentation to produce dense underflow and clarified overflow
- Applications: Tailings management, sludge concentration, chemical slurry separation
- Benefits: Fast installation, relocatable structure, lower logistics costs, enhanced water recovery
Modular bolted construction allows transport in sections and rapid site assembly
Leak-proof joints with gaskets/sealants ensure durability and reliability.
Rake arms continuously move settled solids toward the discharge point.
Flexible design tailored to plant layout, slurry characteristics, and throughput goals.
Technical Specification
| Description | Unit | Model BT-10 | Model BT-12 |
| Tank Diameter | m | 10 | 12 |
| Rated Capacity* | Ltr | 350000 | 450000 |
| Drive Power | kW(HP) | 3.7(5.0) | 5.5 (7.5) |
| Rake Mechanism | — | Central Drive | Central Drive |
| Overflow Clarity | NTU | ≤50 | ≤50 |
| Underflow Density | % | Variable | Variable |
| Construction Material | — | MS / SS (Bolted Panels) | MS / SS (Bolted Panels) |
| Surface Finish | — | Painted / Epoxy | Painted / Epoxy |
| Mounting Type | — | Skid / Civil | Skid / Civil |
| Assembly Type | — | Modular Bolted | Modular Bolted |
*Capacity and performance vary with feed solids concentration, particle size distribution, and flocculant dosage.
