De-Watering Screen
Washing & Classification Equipment
De-Watering Screen
A specialized vibrating screen designed to remove surface moisture from washed sand.
• Operates at high frequency with a sloped deck to accelerate water drainage.
• Typically positioned post-washing and pre-drying or packaging.
Features: Slurry inlet, drainage panels, vibration motors tuned for rapid dewatering.
Benefits: Achieves ≤10% moisture content, improves drying efficiency, and reduces energy consumption.
• Operates at high frequency with a sloped deck to accelerate water drainage.
• Typically positioned post-washing and pre-drying or packaging.
Features: Slurry inlet, drainage panels, vibration motors tuned for rapid dewatering.
Benefits: Achieves ≤10% moisture content, improves drying efficiency, and reduces energy consumption.
High-Frequency Moisture Removal for Washed Sand & Slurry

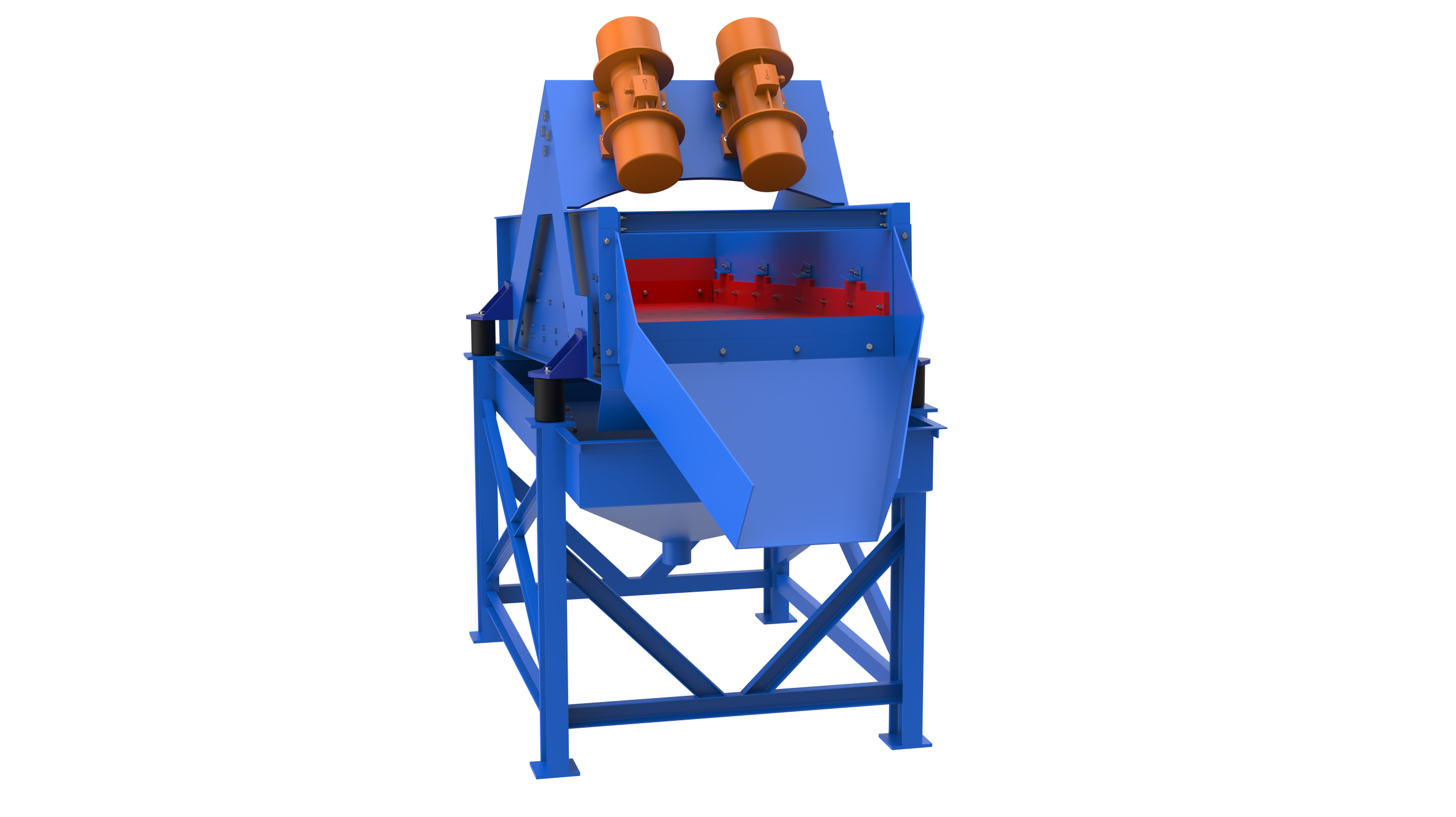

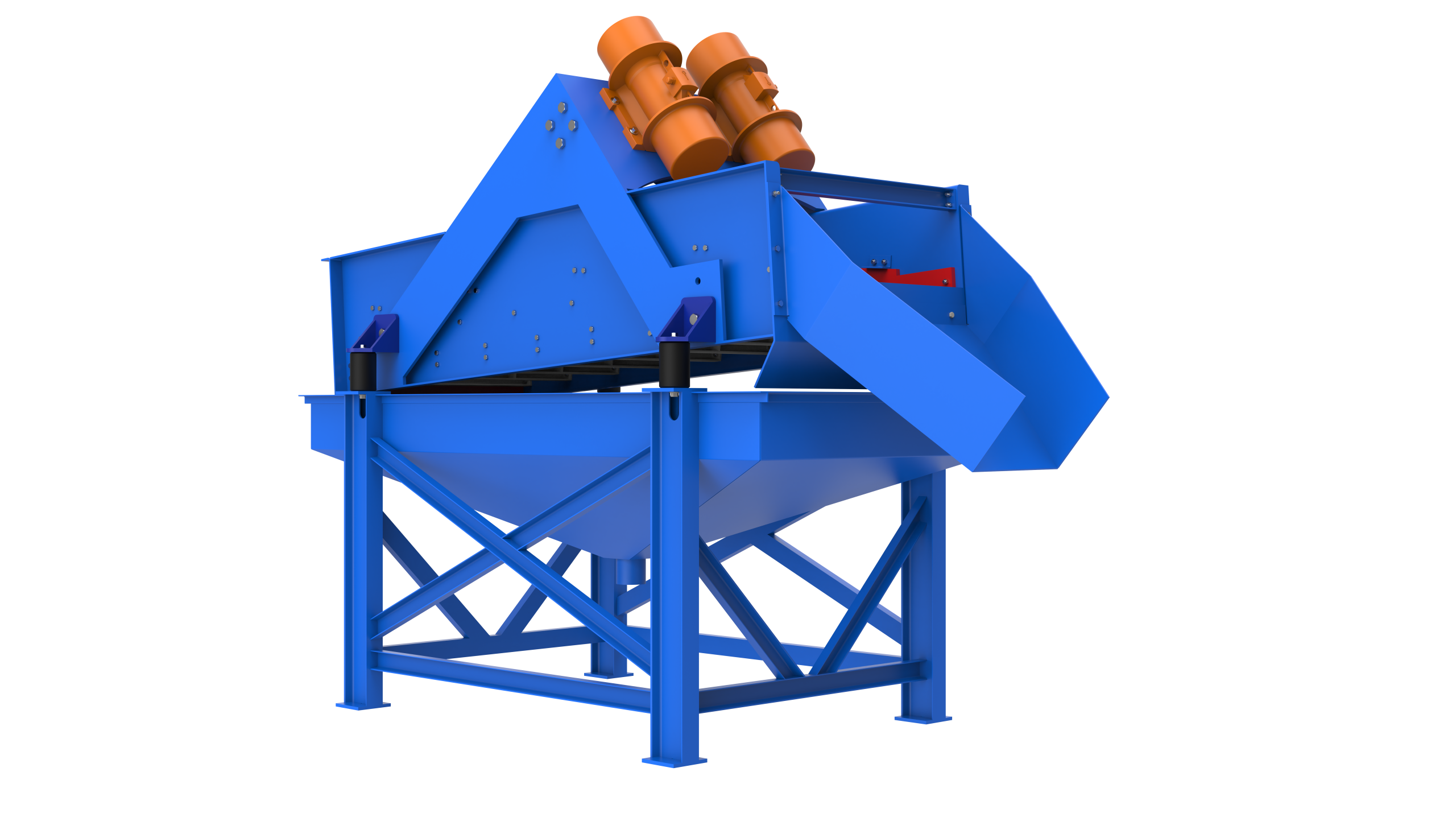

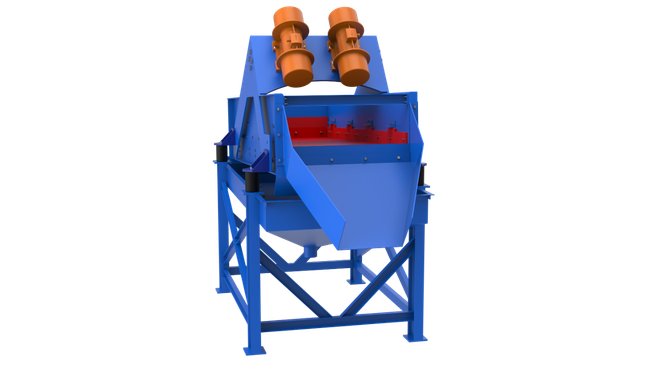

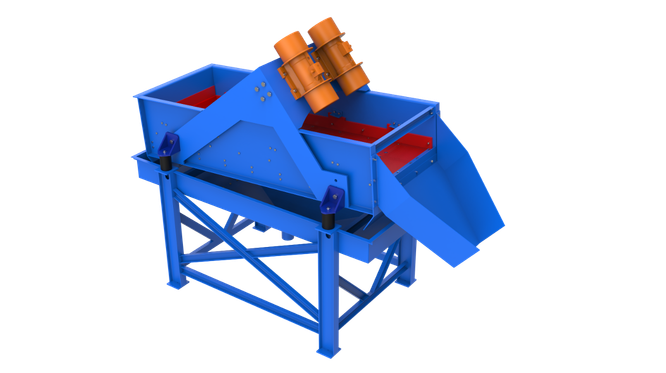

Our De-Watering Screen is a specialized vibrating unit engineered to remove surface moisture from washed sand and slurry streams. Operating at high frequency with a sloped deck, it accelerates water drainage and delivers a drier product—ideal for post-washing, pre-drying, or packaging stages in silica and mineral processing.
- Design: Slurry inlet, drainage panels, tuned vibration motors
- Function: Rapid dewatering with ≤10% residual moisture
- Applications: Silica beneficiation, foundry sand, mineral slurry, construction-grade sand
- Benefits: Improves drying efficiency, reduces energy consumption, and enhances product quality
Optimized deck geometry and vibration tuning ensure efficient water removal and minimal blinding.
Wet mode enhances purity; dry mode ensures consistent moisture levels for dispatch.
Seamless integration ensures stable flow and minimal downtime across the drying circuit.
Tailored to material type, moisture content, and plant layout.
Technical Specification
| Description | Unit | Model DW-1206 | Model DW-1809 | Model DW-2412 | Model DW-3615 |
| Screen Size (W × L) | mm | 1200 × 600 | 1800 × 900 | 2400 × 1200 | 3600 × 1500 |
| Screening Area | m² | ~0.72 | ~1.62 | ~2.88 | ~5.4 |
| Rated Capacity* | TPH | 25 | 50 | 75 | 200 |
| Max Feed Size | mm | ≤10 | ≤10 | ≤10 | ≤10 |
| Moisture Reduction (Final)* | % | ≤15 | ≤12 | ≤10 | ≤8 |
| Vibration Type | — | Linear | Linear | Linear | Linear |
| Screen Media | — | PU Panels | PU Panels | PU Panels | PU Panels |
| Inclination Angle | ° | 4°-6° | 4°-6° | 4°-6° | 4°-6° |
| Mounting Type | — | Skid / Spring | Skid / Spring | Skid / Rubber | Skid / Rubber |
| Construction Material | — | MS / SS | MS / SS | MS / SS | MS / SS |
*Capacity and moisture reduction vary with feed gradation, slurry density, and screen configuration.
