Belt Feeder
Complete Feeder System

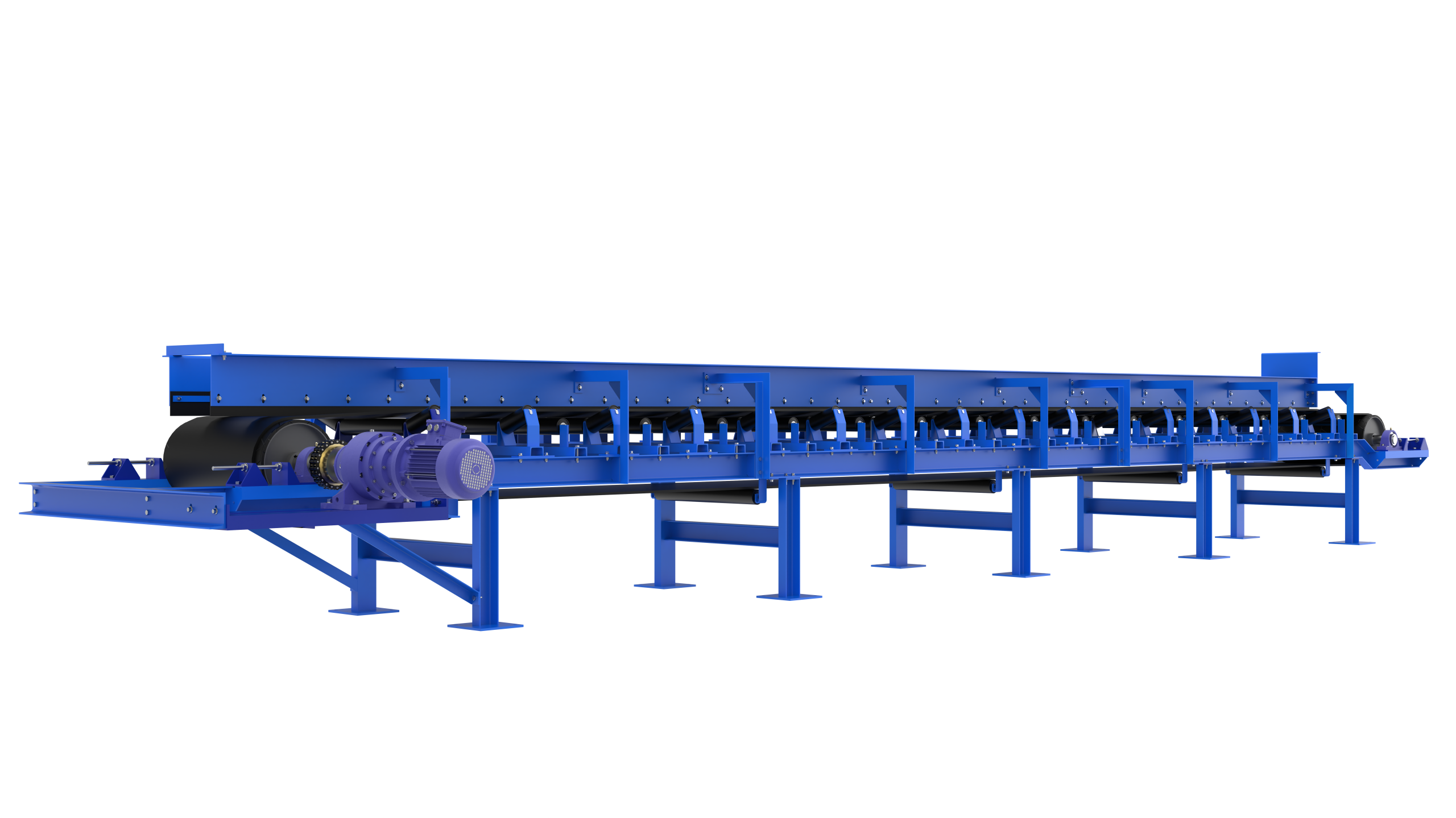

Belt Feeder
A motor-driven conveyor belt system for continuous, uniform discharge of free-flowing materials.
• Design: Troughed belt, adjustable speed, integrated weigh scales (optional)
• Function: Regulates material flow from hoppers or silos with high accuracy.
• Applications: Ideal for long-distance transfer and mass flow control of Silica sand, aggregates, minerals processing, etc…
Precision-Controlled Discharge for Bulk Material Handling

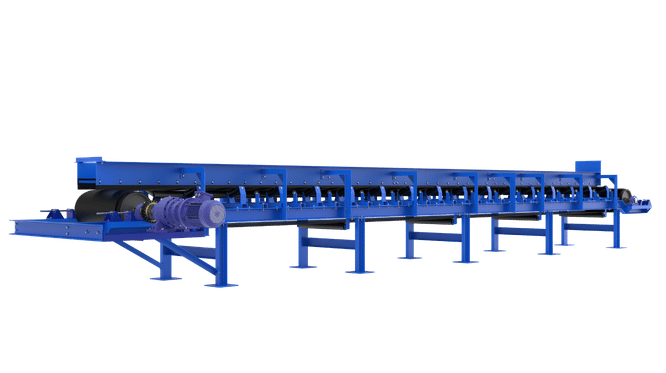

Our Belt Feeder is a motor-driven conveyor system designed for continuous, uniform discharge of free-flowing materials such as Silica sand, aggregates, minerals, etc…. Engineered for long-distance transfer and mass flow control, it ensures stable feed rates and seamless integration with upstream hoppers and downstream Equipment’s like, Washing & Classifications or drying units.
- Design Features
- Frame: Heavy-duty Fabricated from suitable MS/SS profile’s
- Drive System: Shaft-mounted gear reducer (planetary or bevel) with electric motor and VFD Control
- Belt Type: Rubber with optional of anti-abrasive coating.
- Skirting & Sealing: Rubber skirts and dust enclosures to prevent spillage
- Take-Up System: Manual screw or hydraulic tensioning
-
Optional Add-ons:
• Dynamic weighing modules
• Reversible operation under full load
• Isolation gates and belt cleaners
• Safety Systems: Pull wire switches, belt drift detectors, chute block sensors
Optimized belt geometry ensures consistent drawdown and prevents material segregation.
Dual control via belt speed and strike-off height enables precise metering across process stages.
Seamless interfacing ensures stable flow into screens, dryers, or classifiers.
Tailored to plant layout, material type, and operational goals.
Technical Specification
| Description | Unit | Model BF-7040 | Model BF-7060 |
| Belt Width × Length | mm | 700 × 4000 | 700 × 6000 |
| Storage Capacity* | Mt | <35 | <65 |
| Rated Capacity* | TPH | ~50 | ~50 |
| Max Feed Size | mm | < 100 | < 100 |
| Belt Speed | m/s | < 0.125 | < 0.125 |
| Drive Power | kW (HP) | 3.7 (5) | 5.5 (7.5) |
| Drive Type | — | Motorized Gearbox | Motorized Gearbox |
| Installation Type | — | Horizontal | Horizontal |
| Mounting Type | — | Skid / Frame | Skid / Frame |
| Belt Tensioning | — | Screw Take-Up | Screw Take-Up |
| Control Options | — | Manual / VFD | Manual / VFD |
*Capacity values are indicative and depend on feed gradation, density, and belt inclination.
