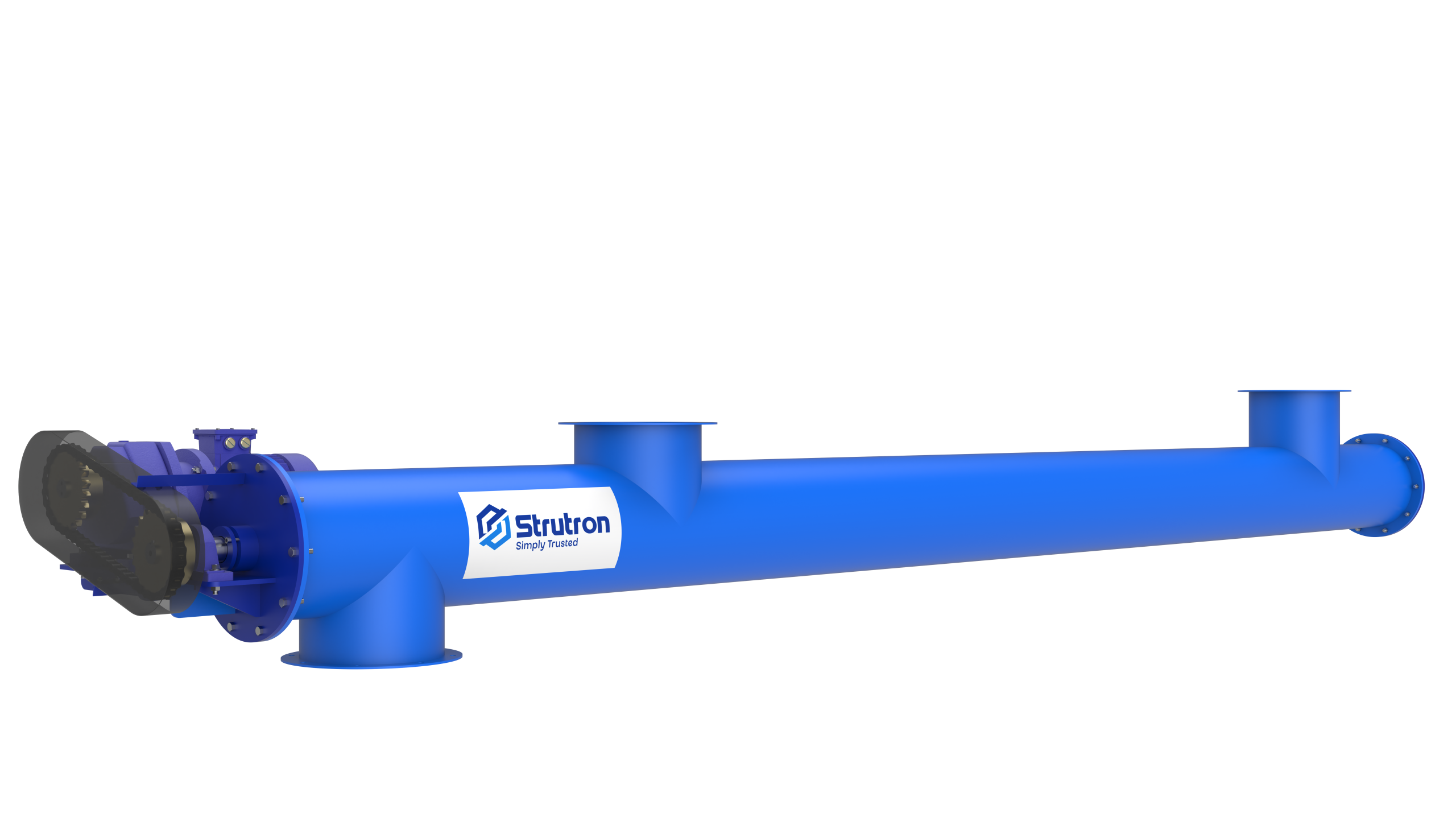

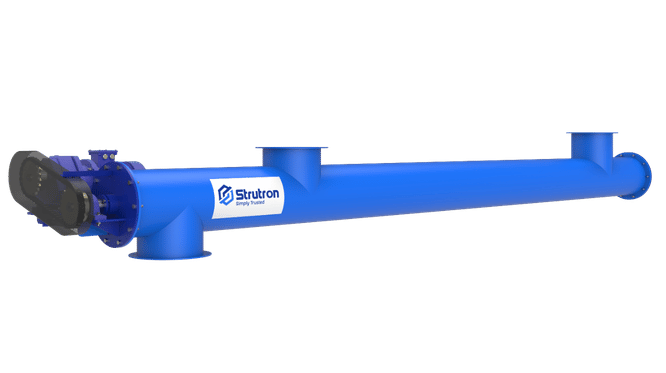

Screw Feeder
Complete Feeder System
Screw Feeder
Enclosed helical screw mechanism for volumetric feeding of
fine or semi-moist materials.
• Design: Variable pitch flights, shafted or shaftless options, dust-tight casing
• Function: Precise dosing with minimal spillage or dust generation.
• Applications: Silica fines, clay-rich sand, powders, etc.
fine or semi-moist materials.
• Design: Variable pitch flights, shafted or shaftless options, dust-tight casing
• Function: Precise dosing with minimal spillage or dust generation.
• Applications: Silica fines, clay-rich sand, powders, etc.
Volumetric Dosing for Fine & Semi-Moist Bulk Materials
Our Screw Feeder is a precision-engineered system designed for controlled, dust-free discharge of fine powders, semi-moist materials, and cohesive bulk solids. While designing a screw feeder every application is a unique on the basis of customer’s requirements. Our Screw Feeder is Ideal for silica fines, clay-rich sand, and industrial powders, it ensures consistent feed rates and seamless integration with hoppers/bins, and downstream equipment.
- Design Features
- Trough Type: U-trough or tubular with wear-resistant liners
- Screw Configuration: Single or double screw; solid or tubular shaft
- Radial Clearance: 5–15 mm depending on screw diameter
- Guarding: Perforated metal or wire mesh with clearance as per requirements
- Safety Systems: Emergency stop, pull cords, reverse flight at discharge (If required)
Optimized geometry ensures even draw-off and prevents rat-holing or bridging in the hopper.
Dual control via screw speed and pitch profile enables precise dosing across process stages.
Smooth interfacing ensures consistent flow and reduces downstream variability.
Tailored to plant layout, material flow behaviour, and operational goals.
Technical Specification
| Description | Unit | Model Range |
| Screw Diameter | mm | 125-1000 |
| Screw Pitch (Standard) | mm | 100-450 |
| Screw Configuration | — | Single/Double |
| Trough Type | — | U-Trough / Tubular |
| Radial Clearance | mm | 5-15 As per design requirement |
| Feed Rate (Max)* | TPH | As per process plant requirements |
| Drive Power | kW (HP) | As per system requirements |

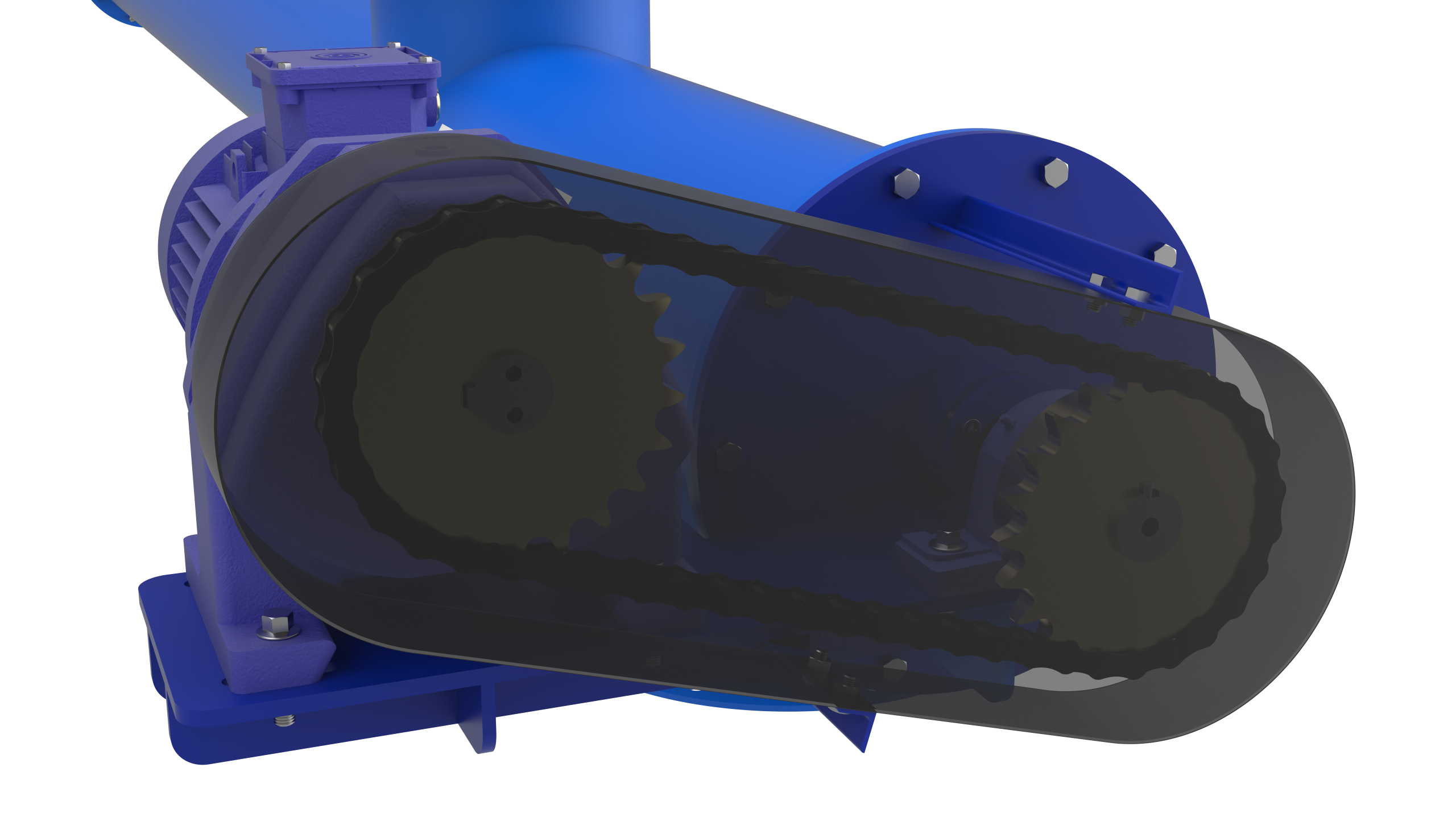

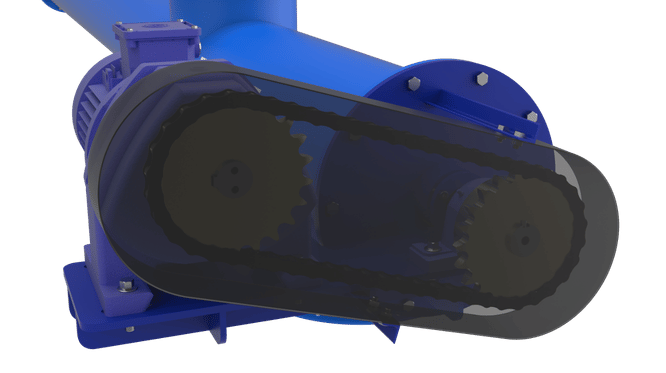

| Drive Type | — | Gearbox / VFD |
| Mounting Type | — | Skid / Frame |
| Construction Material | — | MS / SS |
| Surface Finish | — | Painted / Powder Coated |
| Control Options | — | Manual / VFD |
| Guarding | — | As per standard requirement |
*Feed rate depends on material bulk density, screw speed, and loading ratio.
