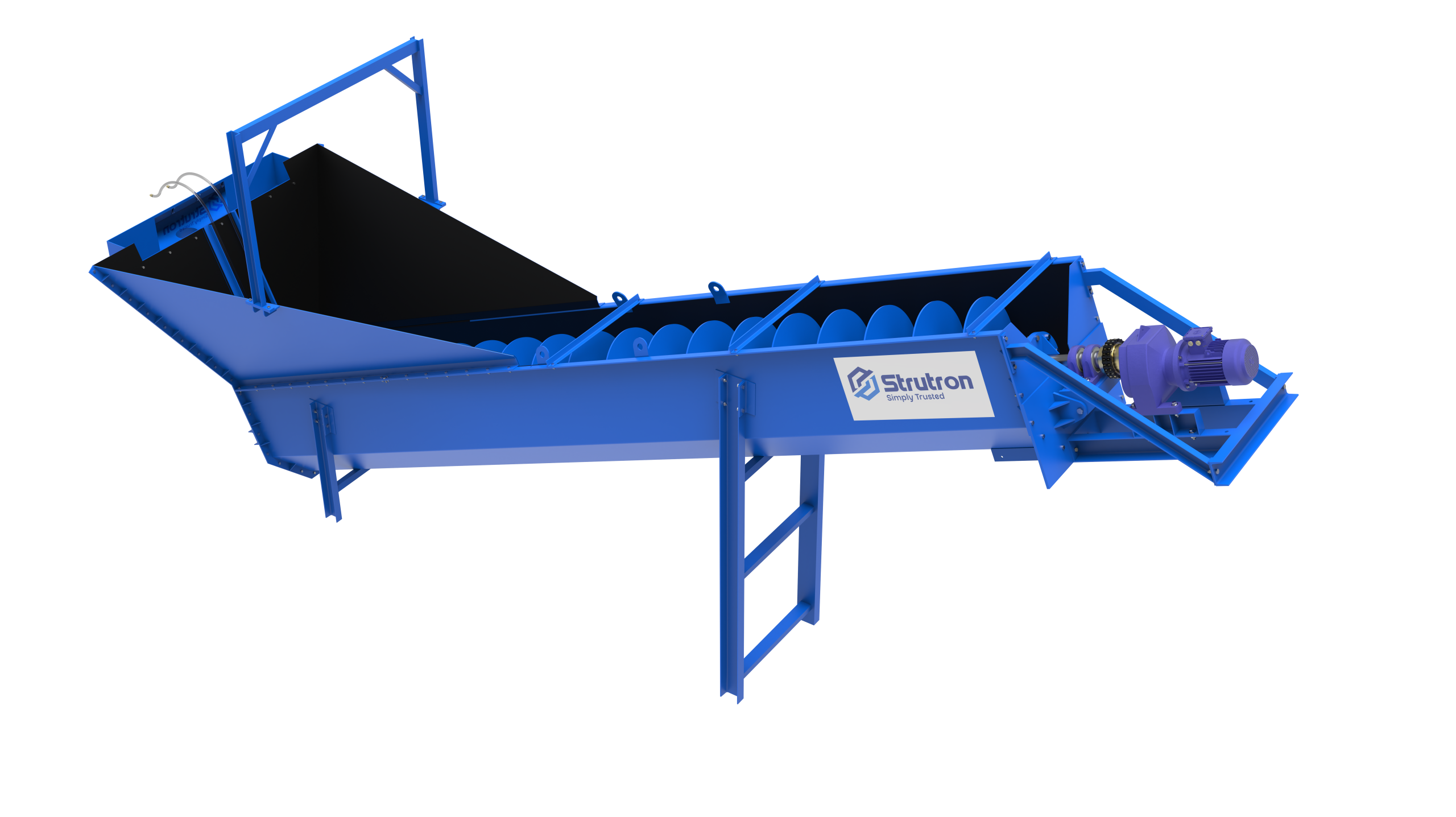

An inclined spiral mechanism used for wet classification based on sedimentation rates.
● Separates ultra-fines and slimes from usable sand fractions.
● Commonly used in silica beneficiation and clay removal stages.
Features: Adjustable screw pitch and speed, overflow weir, settling tank.
Benefits: Enhances purity, improves yield consistency, and reduces downstream load on dryers and screens.

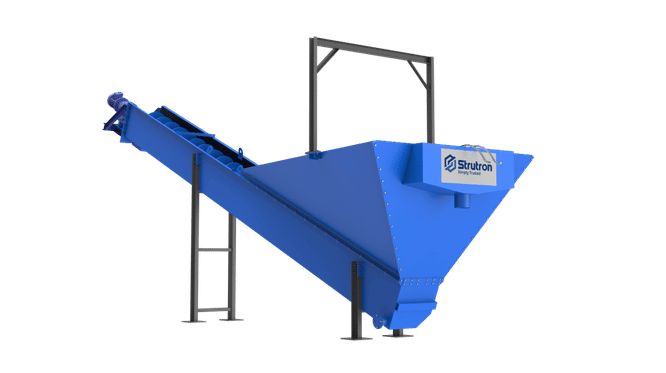

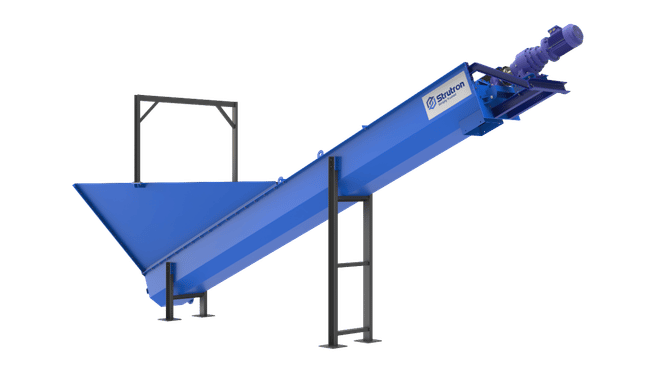

Our Screw Classifier is a precision-engineered system designed for wet classification of sand and slurry based on sedimentation rates. Using an inclined spiral mechanism, it separates ultra-fines and slimes from usable sand fractions—enhancing product purity and reducing downstream load on dryers and screens.
● Design: Adjustable screw pitch and speed, overflow weir, settling tank
● Function: Sedimentation-based separation of fine particles from coarse sand
● Applications: Silica beneficiation, clay removal, mineral washing, slurry classification
● Benefits: Improves yield consistency, reduces moisture carryover, and enhances downstream efficiency
Technical Specification
| Description | Unit | Model SC-450 | Model SC-600 | Model SC-750 | Model SC-1000 |
| Screw Diameter | mm | 450 | 600 | 750 | 1000 |
| Screw Length | mm | 6000 | 6000 | 6000 | 6000 |
| Rated Capacity* | TPH | 10 | 12 | 15 | 25 |

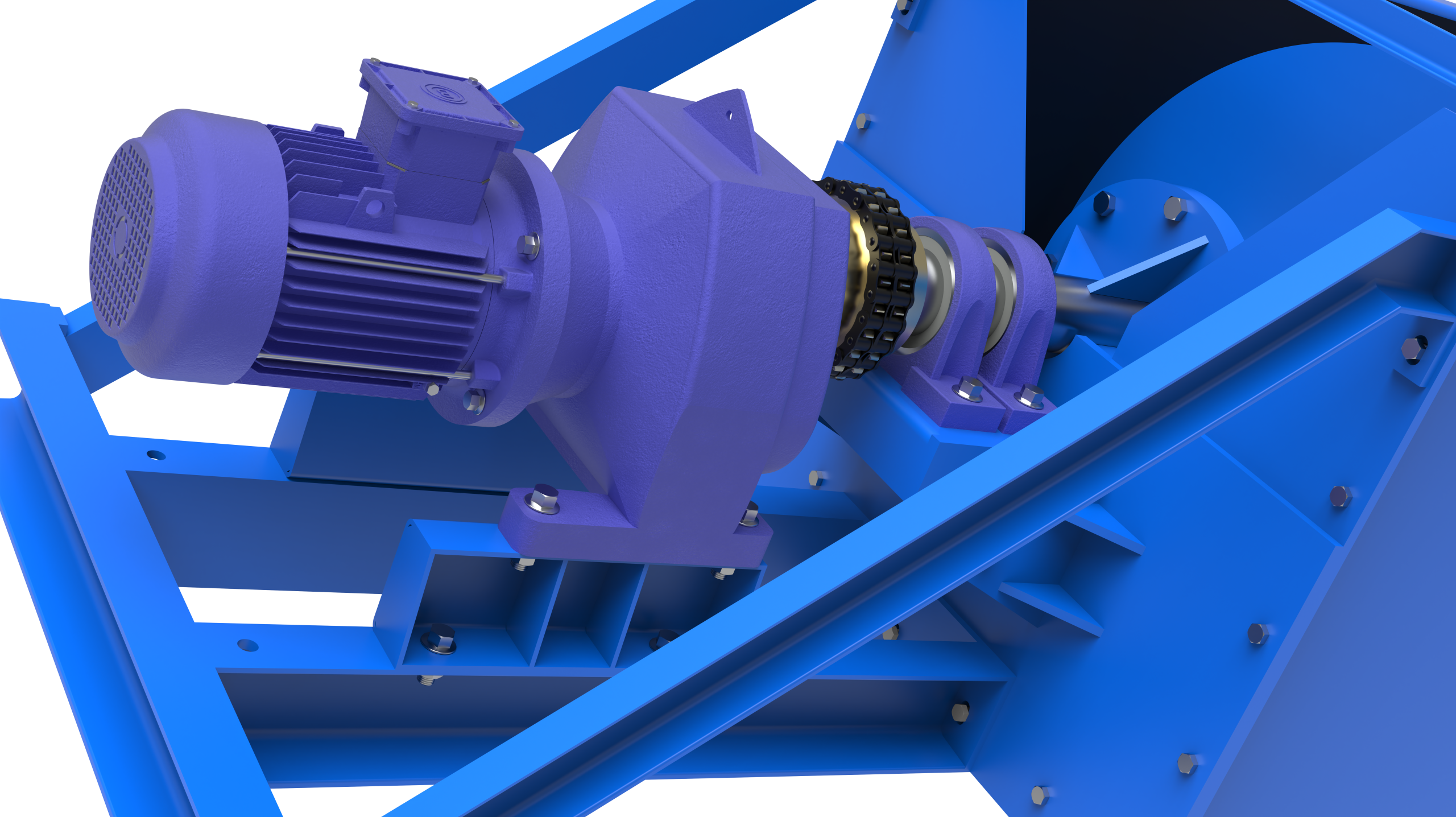

| Drive Power | kW(HP) | 3.7 (5.0) | 3.7 (5.0) | 5.5 (7.5) | 7.5 (10.0) |
| Trough Type | — | Inclined Tub | Inclined Tub | Inclined Tub | Inclined Tub |
| Material Compatibility | — | Silica, M-Sand, Clay | Silica, Foundry Sand | Silica, Construction Sand | Silica, Glass Grade |
| Moisture Reduction (Final) | % | ≤25 | ≤25 | ≤25 | ≤25 |
| Separation Efficiency* | % | ~90 | ~90 | ~90 | ~90 |
| Construction Material | — | MS / SS | MS / SS | MS / SS | MS / SS |
| Surface Finish | — | Painted / Powder Coated | Painted / Powder Coated | Painted / Powder Coated | Painted / Powder Coated |
| Mounting Type | — | Skid / Frame | Skid / Frame | Skid / Frame | Skid / Frame |
